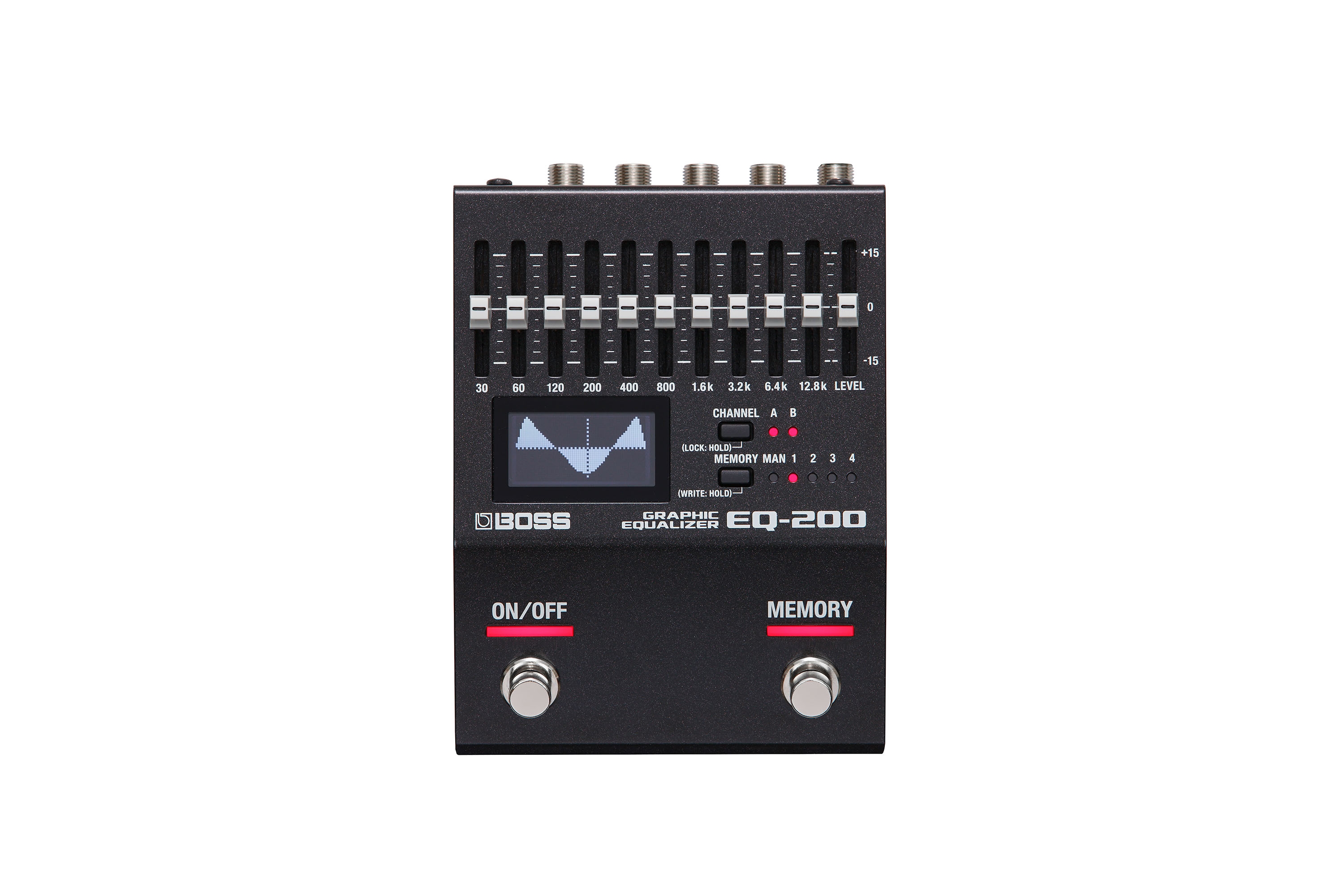

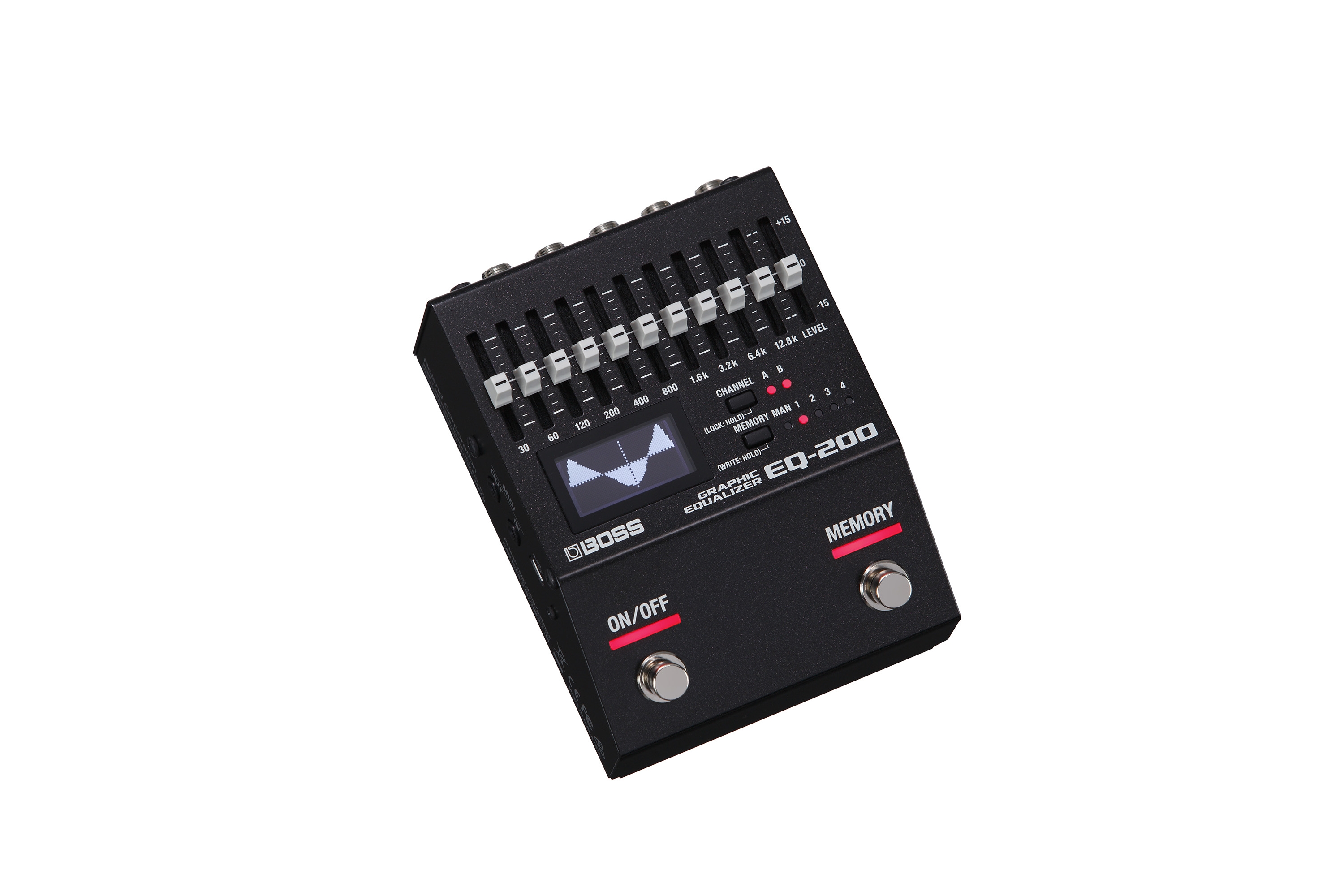

BOSS EQ-200: GRAPHIC EQUALIZER
- Sampling Frequency
96 kHz
- AD/DA Conversion
32 bits
- Processing
32-bit floating point
- Memory
4 Manual
- Nominal Input Level
INPUT A/MONO, B: -10 dBu
- Maximum Input Level
INPUT A/MONO, B: dBu
- Input Impedance
INPUT A/MONO, B: 2 M ohm
- Nominal Output Level
OUTPUT A/MONO, B: -10 dBu
- Maximum Output Level
OUTPUT A/MONO, B: dBu
- Output Impedance
OUTPUT A/MONO, B: 1 k ohms
- Recommended Load Impedance
OUTPUT A/MONO, B: 10 k ohms or greater
- Bypass
Buffered bypass
- Controls
ON/OFF switch, MEMORY switch
30--12.8 k sliders, LEVEL slider
A/B button, MEMORY button
- Display
Graphic LCD (64 x 32 dots, backlit LCD)
- Indicator
A/B indicator, MEMORY (MAN, 1--4) indicators

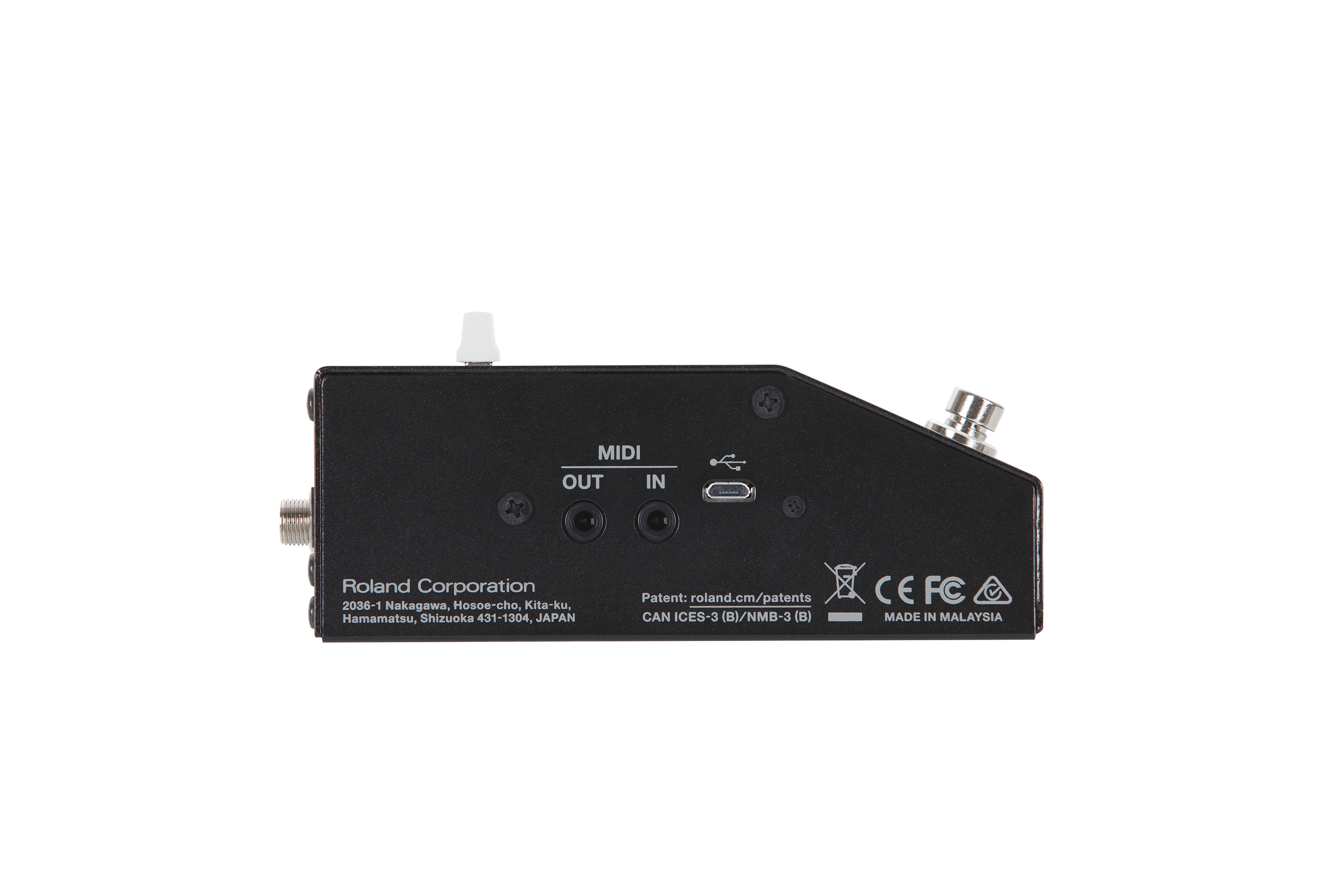

- Connectors
INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro-B type (program update only)
- Power Supply
Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
- Current Draw
170 mA
- Expected Battery Life Under Continuous Use
Alkaline: Approx. 7 Hours
* These figures will vary depending on the actual conditions of use.
- Dimensions
101 (W) x 138 (D) x 60 (H) mm / 4 (W) x 5-7/16 (D) x 2-3/8 (H) inches
101 (W) x 138 (D) x 62 (H) mm / 4 (W) x 5-7/16 (D) x 2-1/2 (H) inches (including rubber foot)
- Weight
630 g / 1 lb 7 oz
700 g / 1 lb 9 oz (including batteries)
- Accessories
Owner's Manual
Leaflet USING THE UNIT SAFELY
Alkaline battery (AA, LR6) x 3
Rubber foot x 4
- Options (sold separately)
AC adaptor: PSA-S series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
MIDI/TRS connecting cable: BMIDI-5-35
* 0 dBu = 0.775 Vrms
